Construction of JR South Shinjuku Building (Provisional Name)

East Japan Railway Company

September 2, 2009

JR East is building a new high-standard rental office building on the site of the former outpatient ward and parking structure of JR Tokyo General Hospital.

The building will include a day-care center to support parents raising children as well as a fitness club to encourage healthy living.

LED lighting will be used throughout the building to make it more eco-friendly.

1. Overview of JR South Shinjuku Building (provisional name)

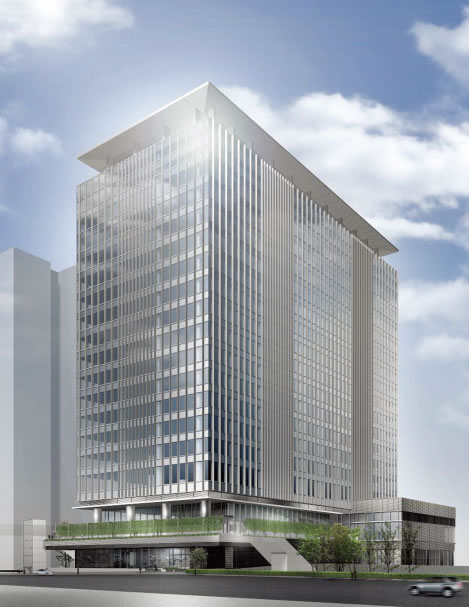

External view

External view

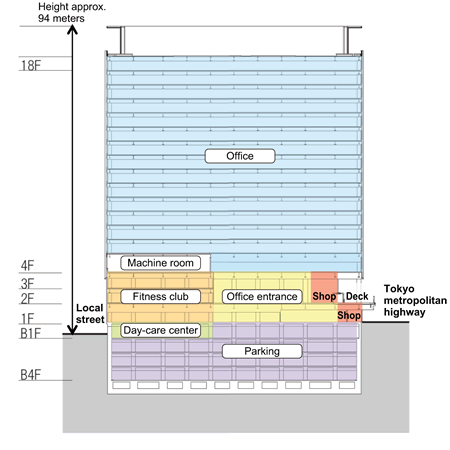

Facility configuration

Facility configuration
(1) Offices (floors 4 - 18)

  The medium/high-rise section of the building will feature a high-standard office zone with the most up-to-date facilities. A typical floor plan of the rental office spaces will be large, esthetically pleasing and without interior columns or posts, including more than 1,850 m2 or about 560 tsubo of area, and a generous ceiling height of 2.9 meters. For security, the building access control system will use Suica cards.

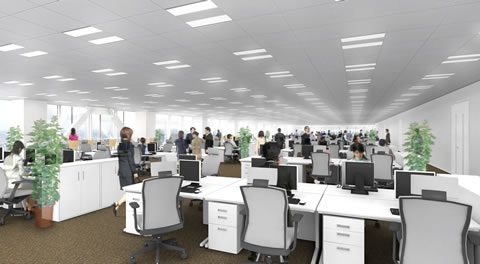

Office interior (Attractive space with no interior posts or columns)

Office interior (Attractive space with no interior posts or columns)
(2) Features and services

  Access
    The building will be linked directly to JR Shinjuku Station by way of Southern Terrace with a bridge over Tokyo Metropolitan Highway no. 414 and by a pedestrian deck to be constructed at the building. Along with the deck, an elevator and escalator will be installed, providing a pedestrian route to JR Tokyo General Hospital.

 Deck•Elevator•Escalator    Access to JR Tokyo General Hospital
Deck・Elevator・Escalator Access to JR Tokyo General Hospital

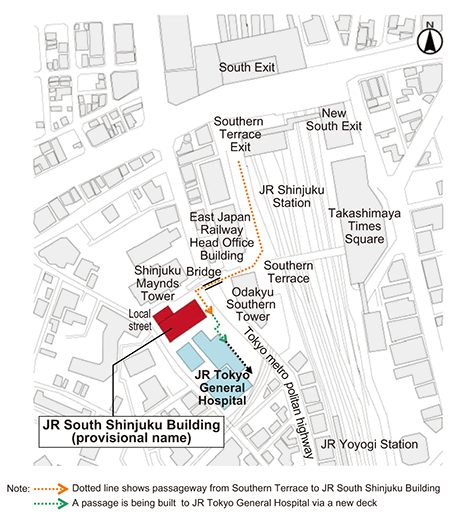

Locator map
Locator map

  Day-care center (first basement/local street level)
    A day-care center with capacity for 45 children and with an attached playground will open in the low-rise section of the building (alongside the local street).

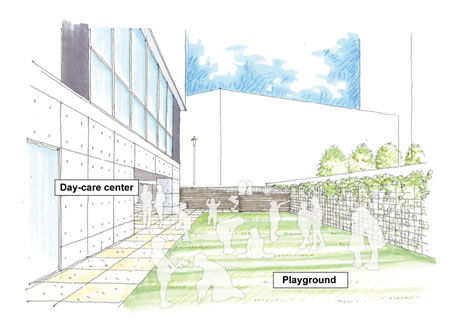

Day-care center with playground
Locator map

  Fitness club (floors 1 - 3)
    A comprehensive fitness club will open in the low-rise section of the building (alongside the local street), featuring a large-scale training gym, three lesson studios and a 25-meter pool. There will also be a bathing facility with saunas and open-air baths to offer a place for relaxation.

  Environmental and other considerations

Eco-friendly LED lighting will be used throughout the building, which will also have district heating and cooling.

Green areas will be established on the roof and in other areas. A garden will be planted on the rooftop of the low-rise section of the building to give office workers a quiet, relaxing place.

On the local street side, the building is set back from the property boundary to provide pedestrians a passage they can use.

Shops will be opened in the building’s low-rise section (alongside the Tokyo metropolitan highway).

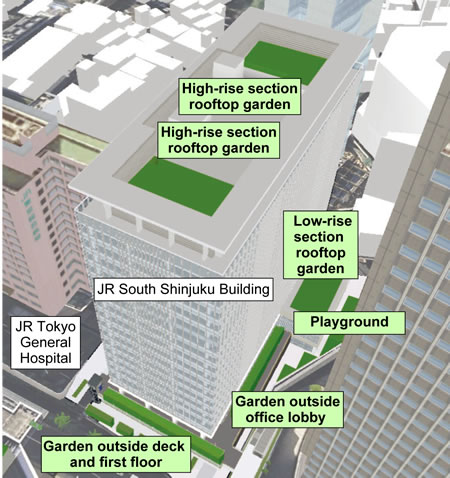

Gardens on rooftop, etc.

Gardens on rooftop, etc.

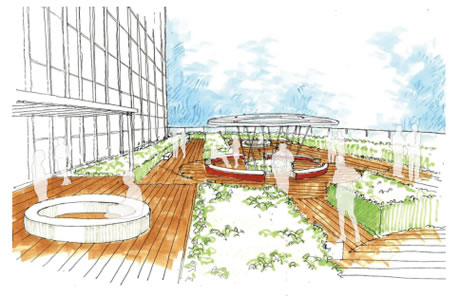

Low-rise section–Rooftop garden

Low-rise section–Rooftop garden

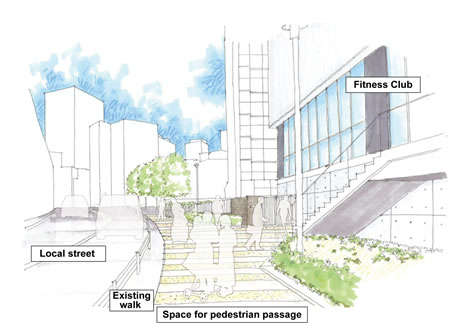

Local street side–Space for pedestrian passage

Local street side–Space for pedestrian passage


2. Facilities overview, operating companies, schedule

(1) Location :   1-1 and 1-17, Yoyogi 2-chome, Shibuya-ku, Tokyo

(2) Construction :   Steel-frame construction (partial steel reinforced concrete)

(3) Floors and height :   18 floors above ground, 4 basement floors; approx. 94 meters high

(4) Floor area :   Approx. 58,000 m2

(5) Configuration by application :   Office space (rental offices on floors 4 - 18): approx. 36,000 m2
      Day-care center (first basement/local street level): approx. 220 m2
      Fitness club (floors 1 - 3): approx. 4,400 m2
      Shops (floors 1 - 2): approx. 300 m2
      Parking (basement 1 - basement 4): approx. 270 autos

(6) Operating companies :   Offices and shops: JR East Building Co., Ltd.
      Day-care center: To be decided
      Fitness club: JR East Sports Co., Ltd.

(7) Schedule :   Planned start of construction: January, 2010;
planned opening: summer, 2012
